FEATURES
● Brand: ZUPPER
● The tool is easier to do maintenance
● With 180° rotatable head
● Enclosed screw structure prevents sand and dust
● Brushless motor with longer motor lift and more Run-time
● Screw Drive with high efficient, press more fast
● Ergonomic design, comfortable operation
● ONE KEY control switch, automatically completes press cycles
● The indicator light, with green indicating completion of press cycle, and red indicating press error or tool malfunction
●OLEO display shows battery percentage.press cycles, fault code.maintenance note
●(VAU) Crimping for Australia standard copper pipe fittings
● Warranty: 2 years OR 20000 uses since the date of purchasing or manufacture.

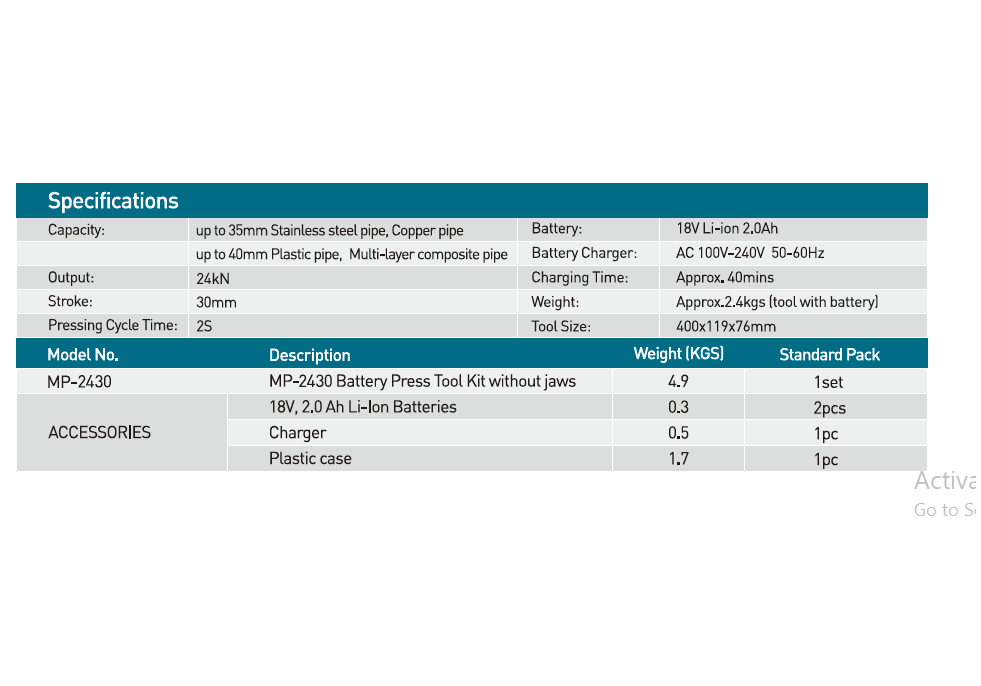

SPECIFICATION
. Capacity: up to 35mm Stainless steel pipe,Copper pipe; up to 40mm Plastic pipe,Multi-layer composite pipe
. Battery: 18V Li-ion 2.0Ah
. Battery Charger: AC 100V-240V 50-60Hz
. Output: 24kN
. Charging Time: Approx.40mins
. Stroke: 30mm
. Weight: Approx.2.4kgs (tool with battery)
. Pressing Cycle Time: 2S
. Tool Size: 400x119x76mm
TIPS
. Before operation, it is necessary to ensure that the jaw is installed properly, the fixing pin is fully inserted, and the fixing pin handle is rotated to tightly adhere to the body and lock in place. If the fixing pin is not inserted fully or the handle of the fixing pin is not rotated fully before operation, it will cause the clamp head to deform.
. Damage caused by improper operation is not covered under the product warranty.
